Physis 菲仕电机

Company Profile

企业简介

宁波菲仕技术股份有限公司(简称:菲仕技术)成立于 2001 年，由民营控股、先进制造产业投资基金和宁波和丰创业投 资有限公司等战略投资人参股，公司致力于以电驱动技术为核心的创新及产业化，为运动控制和能量转换领域提供系统产品和 综合解决方案， 经过多年的品牌沉淀，菲仕已成为一家集研发、生产、销售为一体，拥有国内外多家控股子公司的集团化创新 型高科技企业。

Ningbo Physis Technology Co., Ltd. was founded in 2001, which is a private enterprise holding group company, invested by Advanced Manufacturing Fund and Ningbo Hefeng Venture Capital Co., Ltd. Physis always devotes to innovation and industrialization of electrical drive technology, provides servo products and solutions for the field of motion control & energy conversion. After years of brand development and accumulation, Physis became a collectivized & innovative high-tech enterprise, which collects together research and development (R&D), production and sale, has a numbers of domestic and overseas subsidiaries.

R&D Team

研发团队

 3个研发中心

 4个生产基地

 300+研发团队

 350+ 授权专利

在智能制造全球化的趋势中，菲仕逐步落地国际化的战略布局，在欧洲成立了研发中心，与国内外专业科研机构、专家合作， 进行定期交流和互动，以保持公司持续站立在伺服系统科技创新的最前沿，共同推进产业发展。经过多年的沉淀，顶尖人才的积累， 菲仕在国内拥有省级工程技术中心、省级高新技术企业研究开发中心，并入选了国家工信部第一批专精特新“小巨人”企业!

In the globalization tendency of intelligent manufacture, Physis implements the strategic layout of the group internationalization gradually, builds the R&D center in Europe, communicate and interact regularly with the world-class scientific research institution & industry experts, which makes Physis hold on the lead of the servo system technology innovation and promote industrial development together! After years of development, accumulation of talents, Physis has provincial engineering & technology center and more than 200 people of R&D team. Until now, Physis has more than 300 patents.

电机产品系列

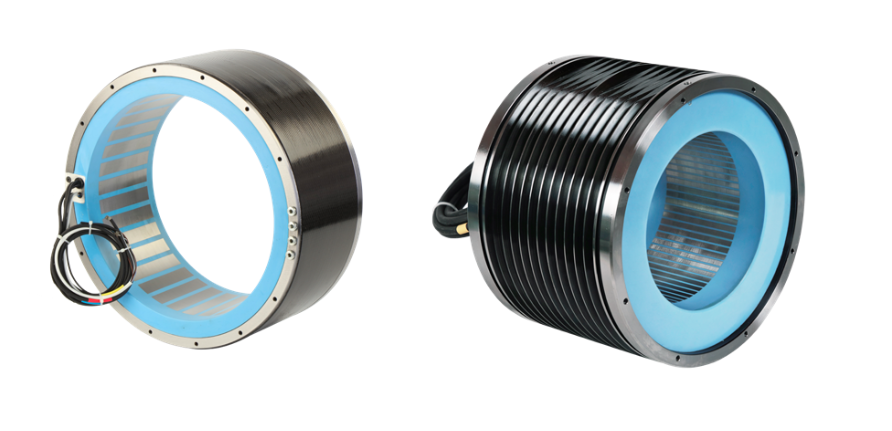

XT Series DD Servo Motors

XT系列直驱力矩电机

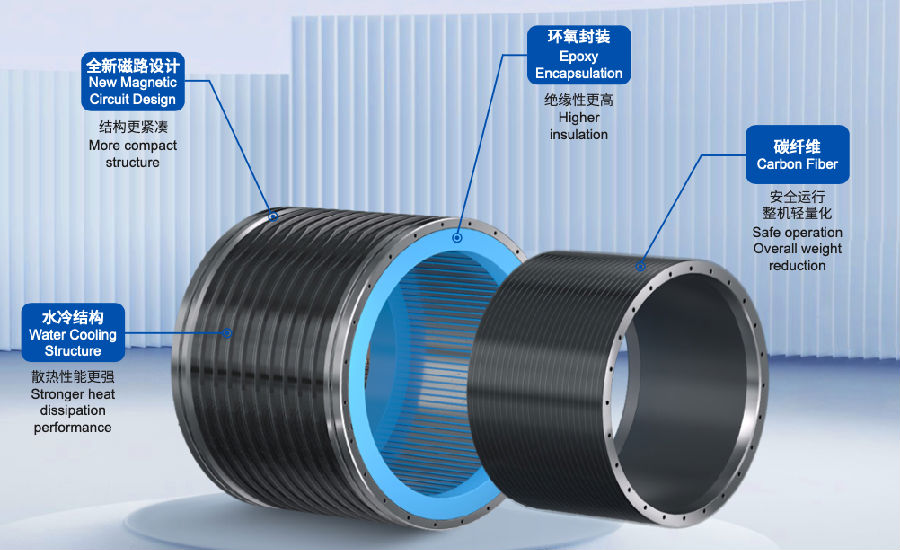

Product Features 产品特点

ü 高功率密度

高功率密度:XT 系列通过新工艺线圈排布技术，大幅提升了槽满率，使得电机在扭矩密度达到行业领先水平。

ü 强工艺技术

采用先进的真空环氧浇注工艺，并辅以独特的冷却结构设计。这一组合不仅显著增强了电机的散热性能，提高了绝缘等级，还大大增强了电机的

结构稳定性，确保电机在长时间、高负荷运行下的可靠性。

ü 紧凑设计

电机结构紧凑，无框设计便于集成在 A 轴、B 轴、C 轴内部，适应各种空间紧凑、高扭矩的严苛应用场景，方便安装与维护。

ü 系列化全面覆盖

该系列电机定子外径范围覆盖 210mm ~ 1220mm，扭矩范围从 60 牛米扩展至 5 万牛米。广泛适用于机床行业的五轴机床、直驱摇篮转台和直驱 摆头等高性能需求的应用场合，为现代工业制造提供了强有力的动力支持。

High Power Density: The XT series, through innovative coil arrangement technology, has significantly increased the slot fill rate, allowing the motor to achieve industry-leading levels of torque density.

Robust Craftsmanship: Utilizing advanced vacuum epoxy pouring techniques, complemented by a unique cooling structure design. This combination not only significantly enhances the motor's heat dissipation capabilities and insulation level but also greatly strengthens the structural stability of the motor, ensuring reliability during long periods of high-load operation.

Compact Design: The motor features a compact structure with a frameless design that facilitates integration within the A-axis 、B-axis、C-axis, adapts to various space-constrained, high-torque demanding application scenarios, and simplifies installation and maintenance.

standardization & serialization: This series of motors covers a stator outer diameter range from 210mm to 1220mm, with torque ranging from 60 Nm to 50,000 Nm. It is widely applicable to high-performance requirements in the machine tool industry, such as five-axis machine tools, direct-drive cradle rotary tables, and direct-drive swing heads, providing robust power support for modern industrial manufacturing.

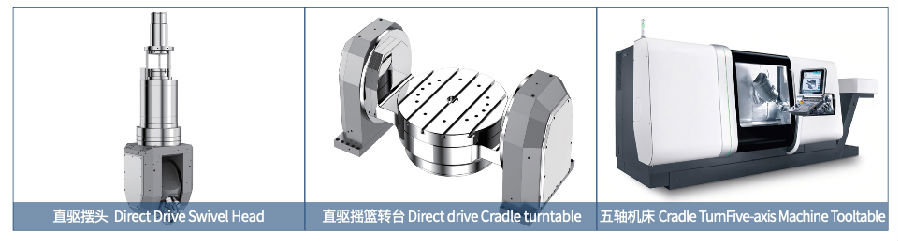

Application 应用领域

直驱摆头 Direct Drive Swivel Head

直驱摇篮转台 Direct drive Cradle turntable

五轴机床 Cradle TurnFive-axis Machine Tooltable

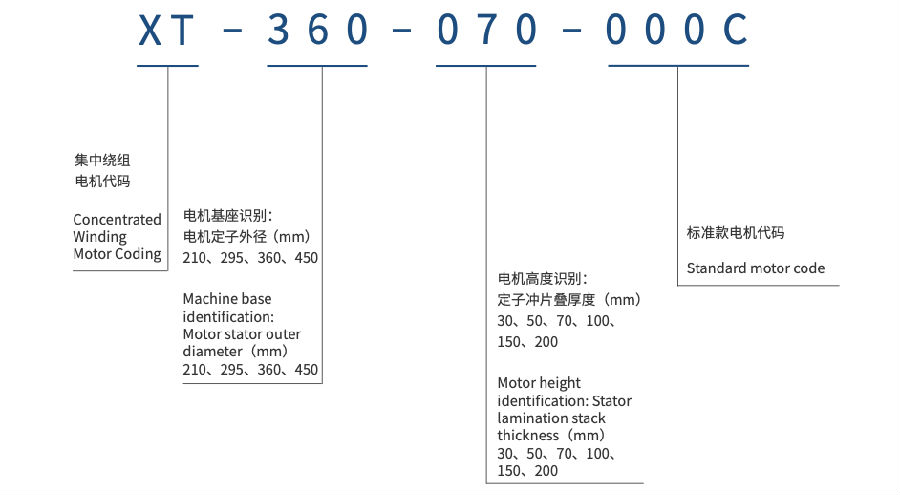

Servo Motor Code

XT 系列伺服电机代码

订购代码示例:

XT360-070-000C

定子外径 360mm，叠厚 70mm 的标准款集中绕组力矩电机

Order Code Example:

XT360-070-000C

The outer diameter of the stator is 360mm, and the stacking thickness is 70mm

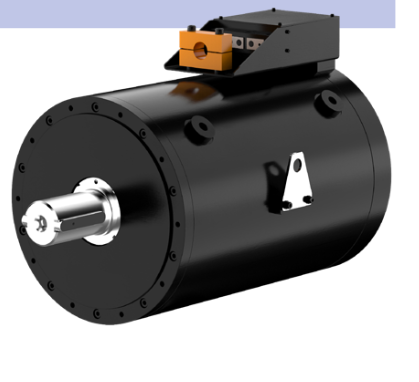

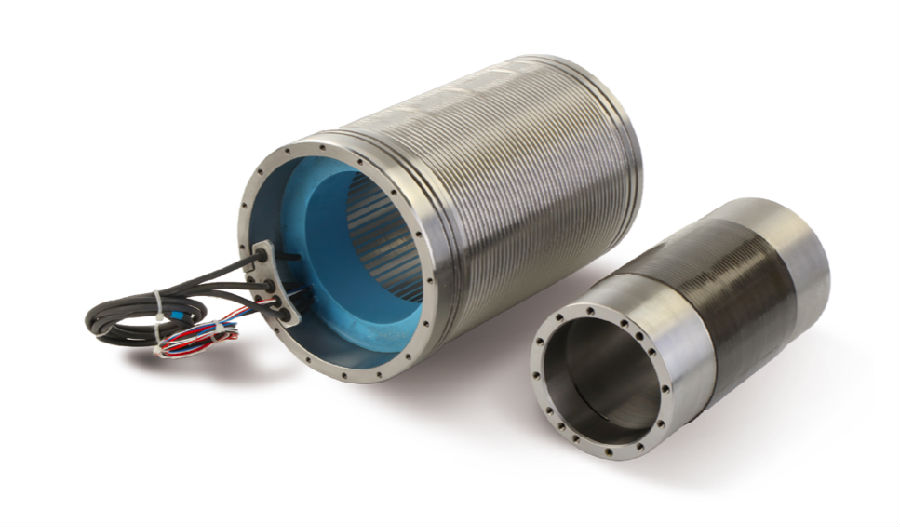

TK Series DD Servo Motors

菲仕 TK 系列直驱力矩伺服电机

菲仕 TK 系列直驱力矩伺服电机具有高转矩密度，为 高性能的运动控制场景而设计。标准无框架结构，分离式 定转子，适于集成到应用设备内部。另可根据行业应用， 定制专用结构，比如，金属成型行业可为整机、单轴承结 构等等。

TK series direct drive servo motor provide the high torque density for high-performance motion control applications. Standard frameless structure is provided with separate stator and rotor, suitable for integration into the equipments. In addition, it can also be made with special structural design for some industries, for example, a complete machine structure, a single bearing structure for the metal forming industry,etc.

额定扭矩: 5Nm ~ 20000Nm 额定转速: 1rpm ~ 35000rpm 峰值功率: 0.5kW ~ 900kW 冷却方式: 自然冷，水冷 连接方式: 散线，航插，接线盒 温度传感器:KTY84 & PTC130

Rated Torque : 5Nm ~ 20000Nm
Rated Speed : 1rpm ~ 35000rpm
Peak Power : 0.5kW ~ 900kW
Cooling : natural convection, water cooling
Connection method : power cable, plug connector, connection box Temperature Sensor : KTY84 & PTC130

主要特点 Features

负载直连，简化传动机构，可靠性高 定转子结构紧凑，体积小 , 重量轻 低速运转平稳，扭矩大 直接驱动，机械传动效率高 启动扭矩大 , 噪音小 , 过载能力强 扭矩常数大 , 电流小 , 驱动器成本低 高速弱磁区大扭矩输出

Directly-connected load, simplified transmission mechanism, and higher reliability; The stator and rotor are compact in structure, small size and light weight;
Smooth operation at low speed, with large torque;
Direct-drive, high mechanical transmission efficiency;

High starting torque, low noise, and strong overload capacity; High torque constant, small current, and low drive cost; High-speed field weakening area and large torque output;

适用场合 Applications

直接驱动应用

低速大扭矩应用

高响应高精度定位控制应用

万转高速应用

空间紧凑的应用

Direct-drive applications;
Low-speed and high-torque applications;
High-response and high-precision positioning controls applications; High-speed rotation application;
Compact space applications;
